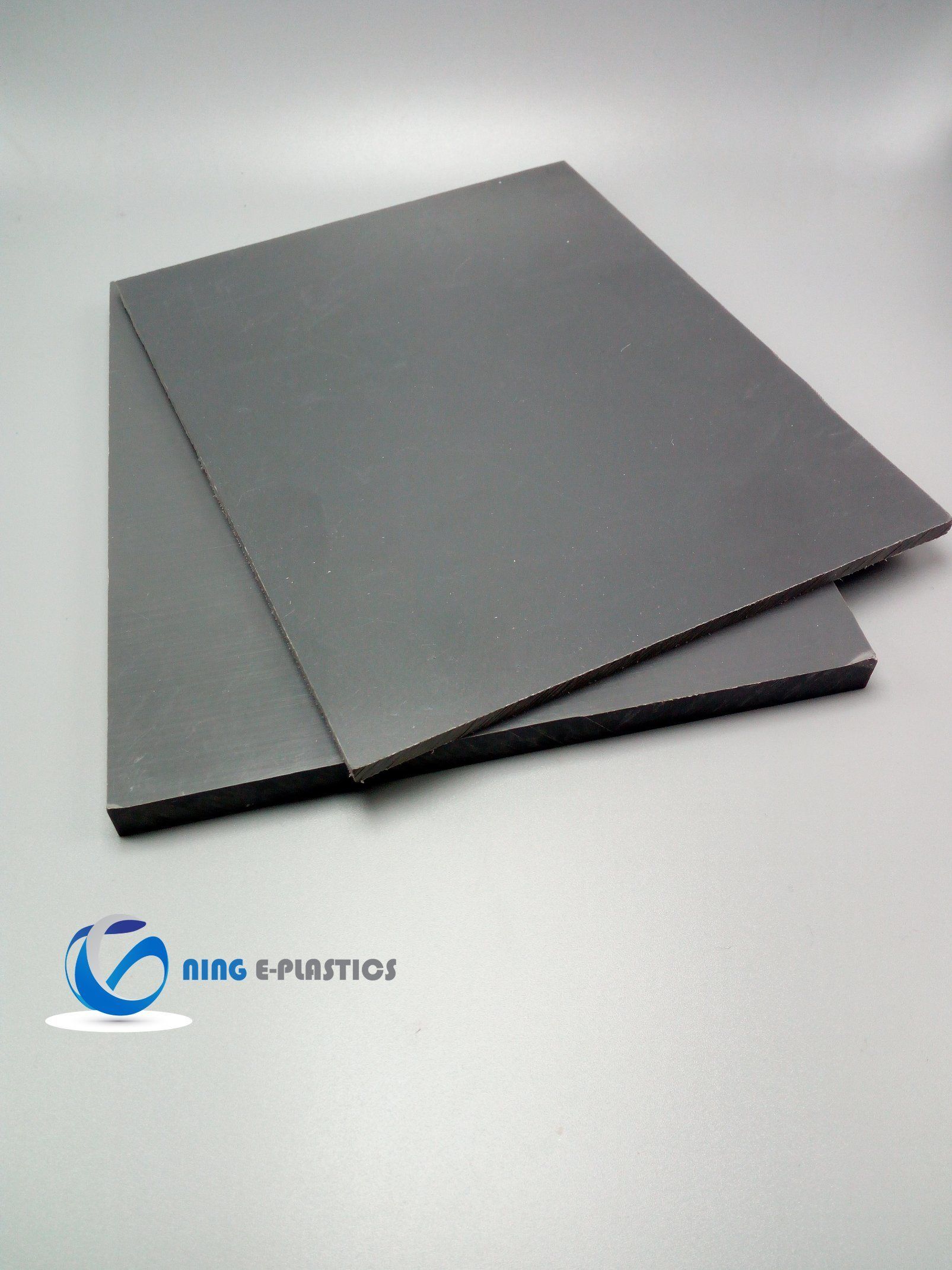

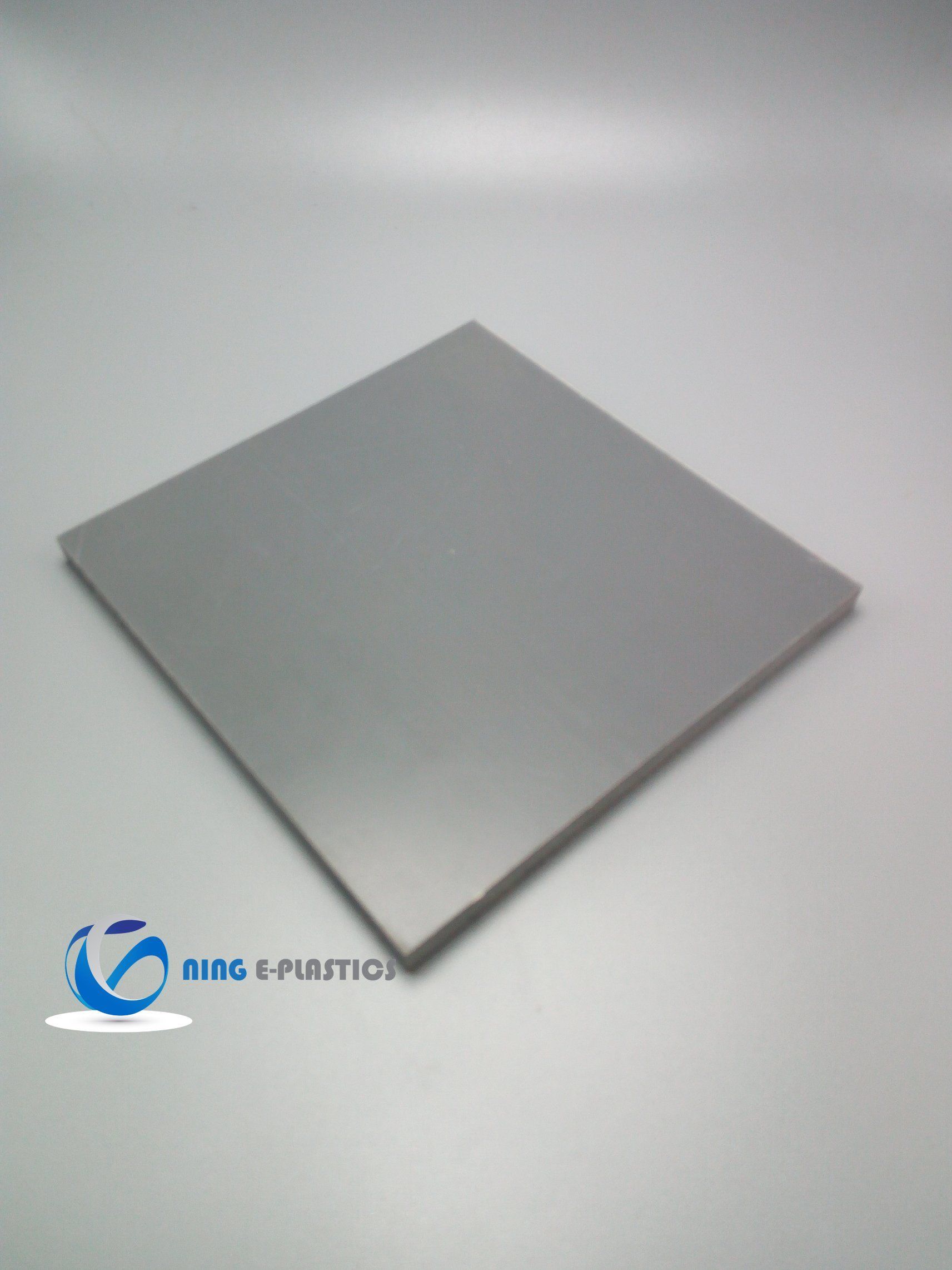

Engineering Plastics Grey Rigid PVC Plate

  • MOQ: Default
  • Port: Hangzhou
  • Packaging: Customizable
  • Lead Time: Default
  • Size: Default Size
  • Color: Default Color

Description:

PVC Sheet

PVC items :

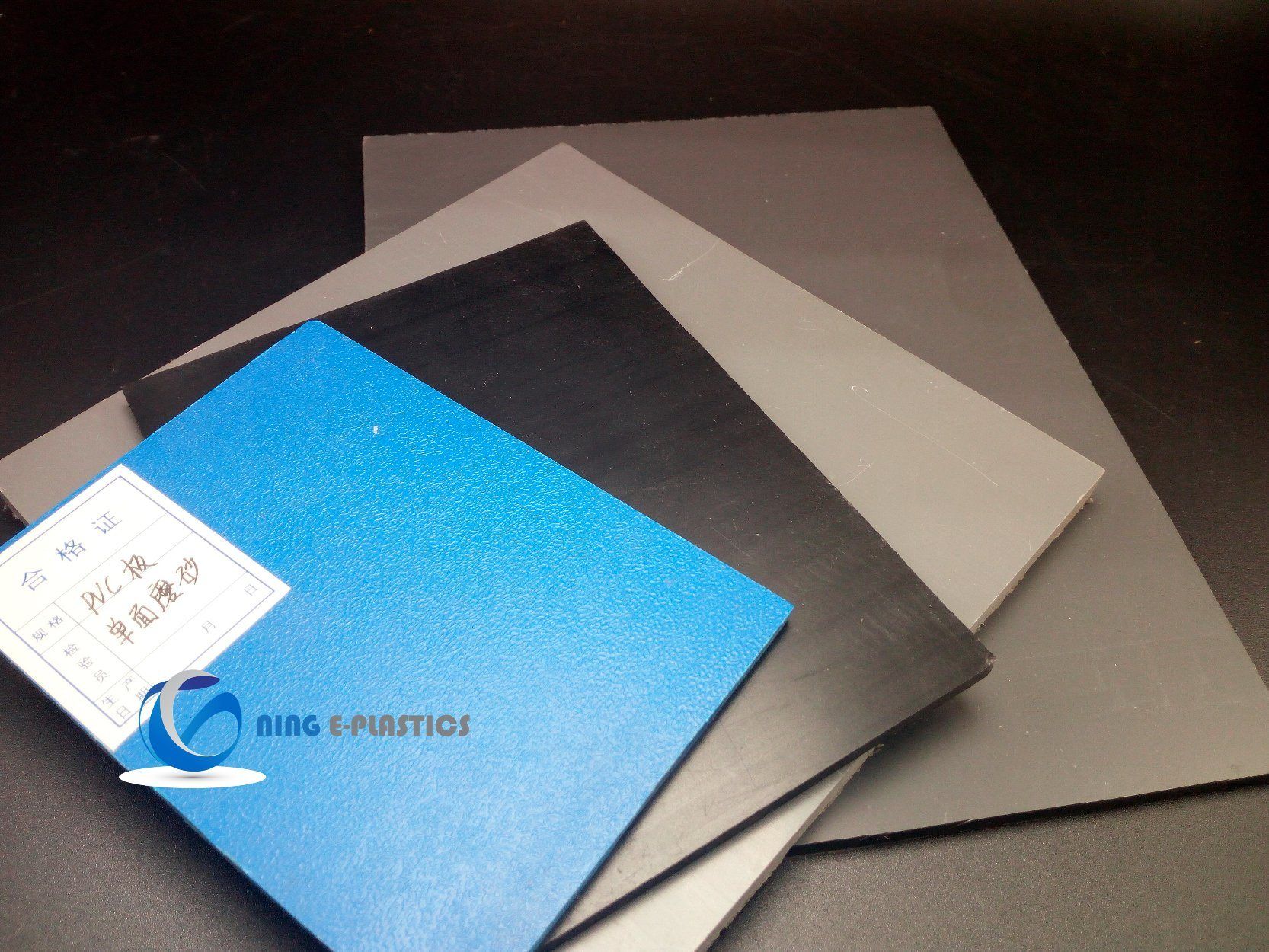

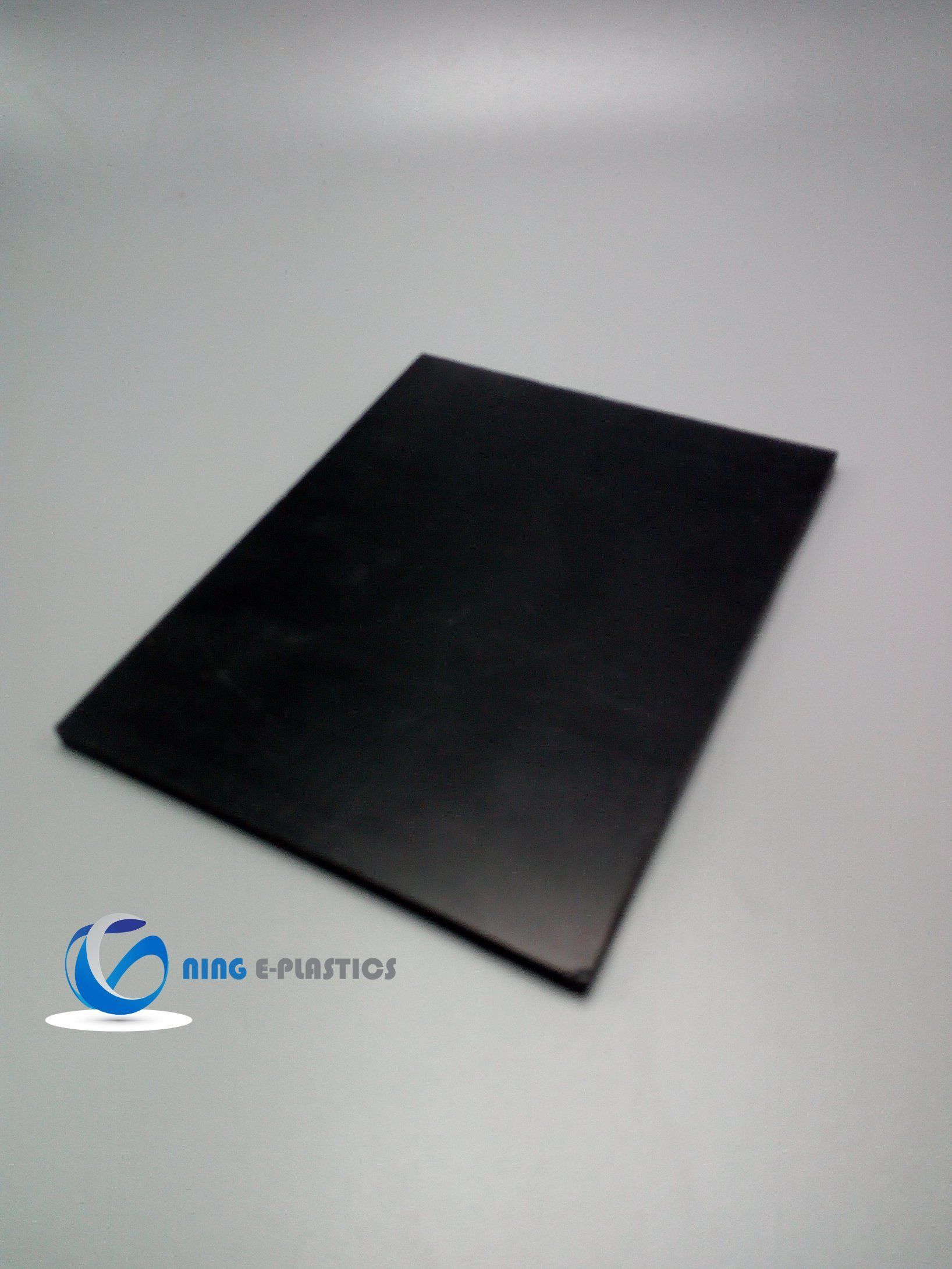

Colour :Dark grey ,Light grey ,black

PC sheet :thickness :1-60mm

Size:1200*2400mm/1000*2000mm

PVC rod Diameter:12-350mm,length :1000-30000mm.

PVC is the most widely used member of the vinyl family. Common applications include chemical processing tanks, valves, fittings & piping systems. PVC The outstanding performance of PVC includes high mechanical strength, high hardness, good chemical resistance, electrical insulation, good printing and welding. PVC modified varieties including high polymer PVC, chlorinated PVC and PVC / ABS alloy. It's working temperature is 0ºC~+70ºC



Product Properties :

  1. high chemical stability,fine anti-fire,super-transparent 2.highly UV.stabilized,good mechanical properties,high hardness and strength

         3.the sheet aslo has well aging resistance,good selfextinguishing property and reliable insulativity,

         4.Moreover the sheet is waterproof and has very good smooth surface,and is non deformable.
5. Application:chemical industry,oil industry,galvanization,water purification equipments.

  1. Application: environment protection equipments,medical appliance and so on.
  2. important item: the sheet anti-stastic,anti-UV,anti-sticky



Application :

Machining; Cutting, sawing, turning, drilling, planing, milling, grinding & screwing.

Welding;Hot-gas, heated-tool & folding.

Eviroment protection,chemical industry,mentallurgy of rare metals, extraction work of rare earth,water treatment, construction industry and bridge-building industry





MECHANICAL PERFORMANCE
Content/Features/Property Testing standard Unit PVC Anti-static PVC Conductive PVC
Long Term Working Tem   ºC 12~28 55
Density ASTM D792 g/m³ 1.55 1.55
Yield Stretch Strength ASTM D638 Mpa 50 90
Breaking Stretch Strenghth ASTM D639 Mpa
Breaking Stretch Rate ASTM D638 % 10
Bending Modulus ASTM D790 Mpa 2400 3000
Hardness Shore type D Mpa 108 82
Impact Strength ASTM D256 KJ/ 50
Thermal Properties
Melting Point DSC ºC 120 120
Heat defection temperature ASTM D648 ºC 70
MAX Operating Termperature(short term)   ºC
Thermal conductivity 23ºC W/(K-M)
Coefficient of linear expansion ASTM D696 10-5-1/K 80×10-6 80×10-6
Electrical Features
Dielectric constant ASTM D150
Dielectric loss coefficient ASTM D150
Volume resistance ASTM D257 Ω.cm 1015 108 104
Surface resistance ASTM D257 Ω 1016 109 104
Dielectric strength ASTM D149 KV-mm 30
Chemical Features
Balance Water Absorption 23ºC,60%RH % 0.2 0.2
Acid Resistance 23ºC,60%RH   +
Alkali Resistance     +
Acid and Alkali Water Resistance     +
Chlorine with Acid and Alkali Resistance     0
Aromantic Compound Resistance     0
Ketone Resistance 23ºC,60%RH
Hot Water Resistance 23ºC,60%RH   +
Others
Combustibility UL 94   HB   V-0
Media CLO 2 (8-9 GPL) & Clorida dioksida +
Non-toxic harmless sexual EEC90/128FDA   +
Friction coefficient DIN53375   0.35
Ultraviolet UV resistance     0
