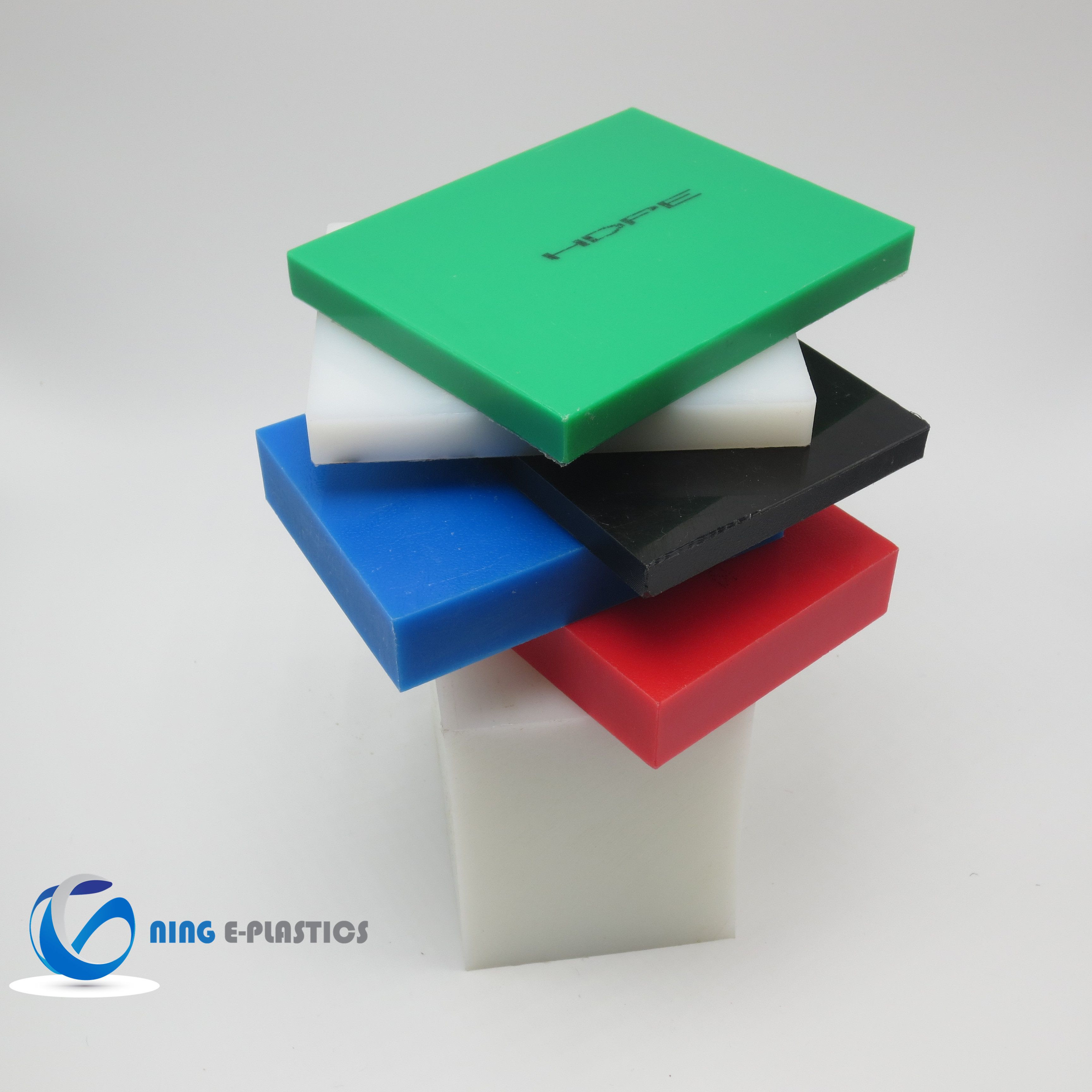

Plastic PVC Sheet High Density Polyethylene HDPE Sheet PE PP Nylon Polycarbonate UHMWPE Sheet For Tanks Or Cutting Board

Reviews

MOQ: Default
Port: Hangzhou
Packaging: Customizable
Lead Time: Default
Size: Default Size
Color: Default Color

Category: Other Products

Get Inquiry

Description:

Colour : Black /white /red/yellow/orange/blue

HDPE Sheet Thickness: 2-200 mm, 0.2-3 mm

HDPE Sheet Size: Length: 1220 mm, 1000×2000 mm

This kind of HDPE plastic sheet features more advance performance than standard HDPE sheeting. The enhanced highlights of HDPE pipe grade make it the most well-known HDPE sheet for open air applications.

Item	RESULT	UNIT	PARAMETER	NORM USED
Mechanical properties
Modulus of elasticity	1000	MPa	In tension	DIN EN ISO 527-2
Modulus of elasticity	1000 - 1400	MPa	In flexure	DIN EN ISO 527-2
Tensile strength at yield	25	MPa	50 mm/min	DIN EN ISO 527-2
Impact strength (Charpy)	140	Kj/m 2	Max. 7,5j
Notched Impact stren. (Charpy)	No break	Kj/m 2	Max. 7,5j
Ball indentation hardness	50	MPa		ISO 2039-1
Creep rupture strength	12,50	MPa	After 1000 hours static load 1% elong. after 1000 hours Against steel p=0,05 N/mm 2
Time yield limit	3	MPa
Coefficient of friction	0,29	------

Thermal properties
Glass transition temperature	-95	°C		DIN 53765
Crystalline melting point	130	°C		DIN 53765
Service temperature	90	°C	Short term
Service temperature	80	°C	Long term
Thermal expansion	13 - 15	10-5K-1		DIN 53483
Specific heat	1,70 - 2,00	J/(g+K)		ISO 22007-4:2008
Thermal conductivity	0,35 - 0,43	W/(K+m)		ISO 22007-4:2008
Heat distorsion temperature	42 - 49	°C	Method A	R75
Heat distorsion temperature	70 - 85	°C	Method B	R75
