Pure Plastic Plate Tef Lon Film PTFE F4 Sheet For Washer

  • MOQ: Default
  • Port: Hangzhou
  • Packaging: Customizable
  • Lead Time: Default
  • Size: Default Size
  • Color: Default Color
Category: PTFE PRODUCTS

Description:

Product Description

Company Info.

  • Overview
  • Company Profile
  • Detailed Photos
  • Warehouse
  • Packaging & Shipping
  • FAQ
Overview

Product Description

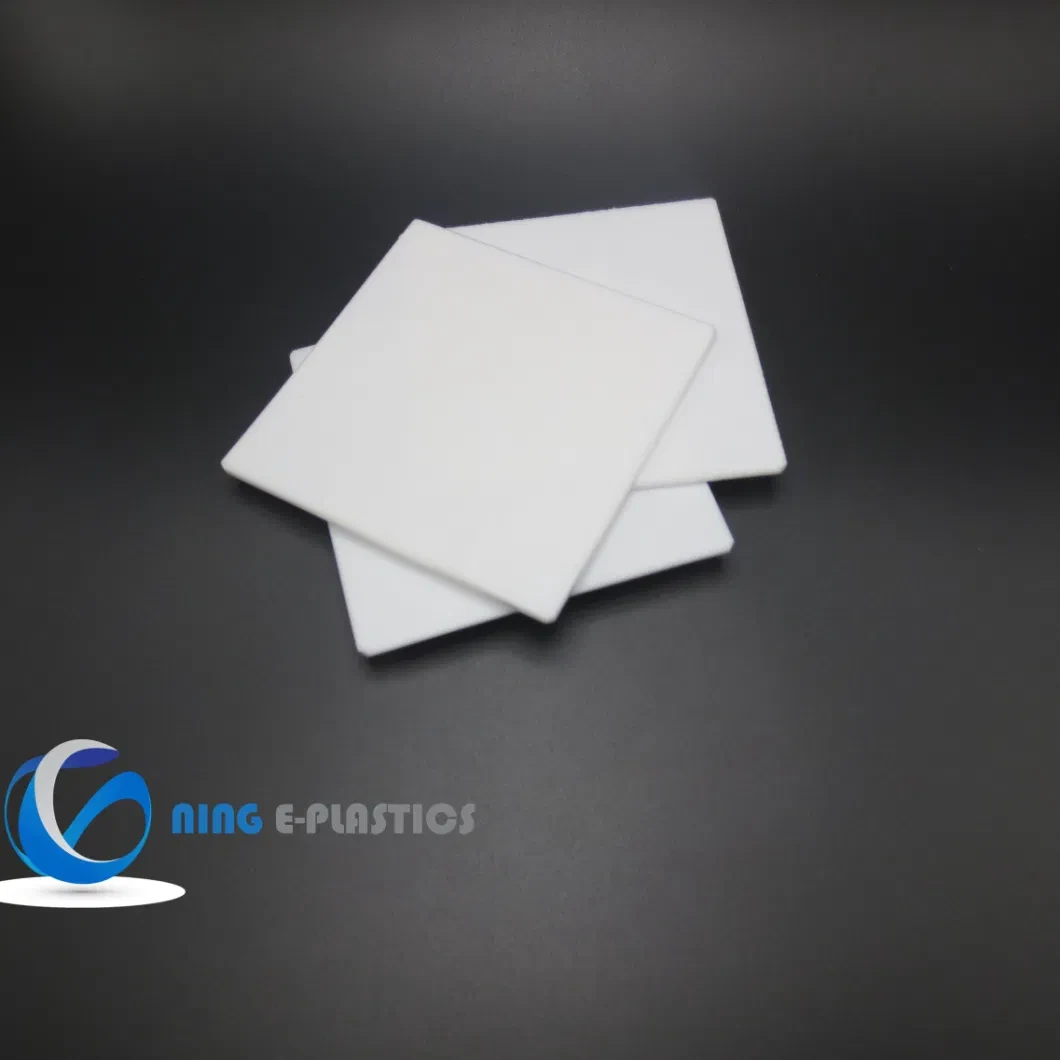

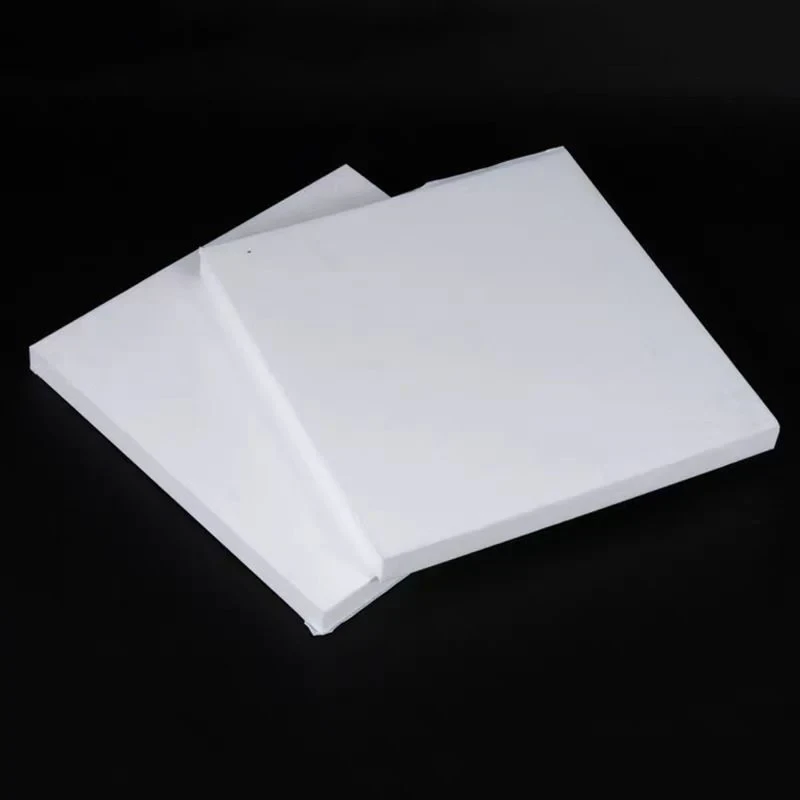

PTFE sheet

Specifications
                         Size
Categories
Length(mm) Width(mm) Thickness(mm)
Mold Sheet 300 300 2-150
400 400 2-150
450 450 2-150
500 500 2-150
600 600 2-150
800 800 2-150
1000 1000 2-150
1200 1200 2-150
1500 1500 2-50
1800 1200 2-50
1800 1800 2-50
2000 1000 2-50
2000 2000 2-50
Skived sheet 10-2700 10-2700 0.02-10
Sodium Etched PTFE Sheet     0.025-100

PTFE has the highest melting point and is capable of continued service at -180-260 C. PTFE  is a melt processible resin capable of continued service at 204 C. PTFE products such as teflo n gaskets  are used as gasket and packing materials in chemical processing equipment; as electrical insulation for maximum reliabillity; and in bearings, seals, piston rings and other mechanical applications, especially those require anti-stick characteristics. PTFE has excellent thermal and electrical insulation properties. it has a low coefficient of friction.

Characteristics

High and low temperature resistance(-180ºC~+260 ºC)

Corrosion resistance(strong acid, strong alkali etc)

Weather resistance

High insulation

High lubrication

Non adhesion

Non toxic etc

Application

Widely used in Gasket,Valve packings,Diaphragms and mechanical seals .

linings of pipes ,valves ,Pumps and vessels .Chemical,Machinery fields .Electrical insulation parts .

PROPERTIES STANDARD UNIT RESULT
mechanical property
Density   g/cm3 2.10-2.30
Tensile strength   Mpa 15
ultimate elongation   % 150
Tensile strength D638 PSI 1500-3500
Produce Max.Temp   ºC 385
hardness D1700 D 50-60
Impact strength D256 Ft./Lb./In. 3

Melting poing   ºC 327
working Temp. ASTM D648 ºC -180 ~260
Elongation D638 % 250-350
Deformation % 73 0F ,1500 psi 24 hours D621 N/A 4-8
Deformation % 1000F,1500psi,24hours D621 N/A 10-18
Deformation  % 2000F,1500psi 24 hours D621 N/A 20-52

lzod     6
Water absorption D570 % 0.001
Coefficient of Friction   N/A 0.04
Dielectric constant D150 Ω 1016
Dielectric strength D257 Volts 1000

Coeffcient of thermal expansion 73 0F D696 In./In./Ft. 5.5*10.3
Coefficient of thermal conductivity *5 Btu/hr/ftz 1.7
PV at 900 ft./min N/A 2500
Colour *6 N/A white
PTFE was widely used as resistant high & low temperature material,Corrosion-resistant materials,Insulation materials in the atomic energy,defense,aerospace,electronics,electrical,chemical industry,Machinery,instruments,meters,construction,textile,metal,surface treatment,pharmaceutical,medical.food and metallurgical smelting,and become irreplaceable products.

Company Profile

Detailed Photos

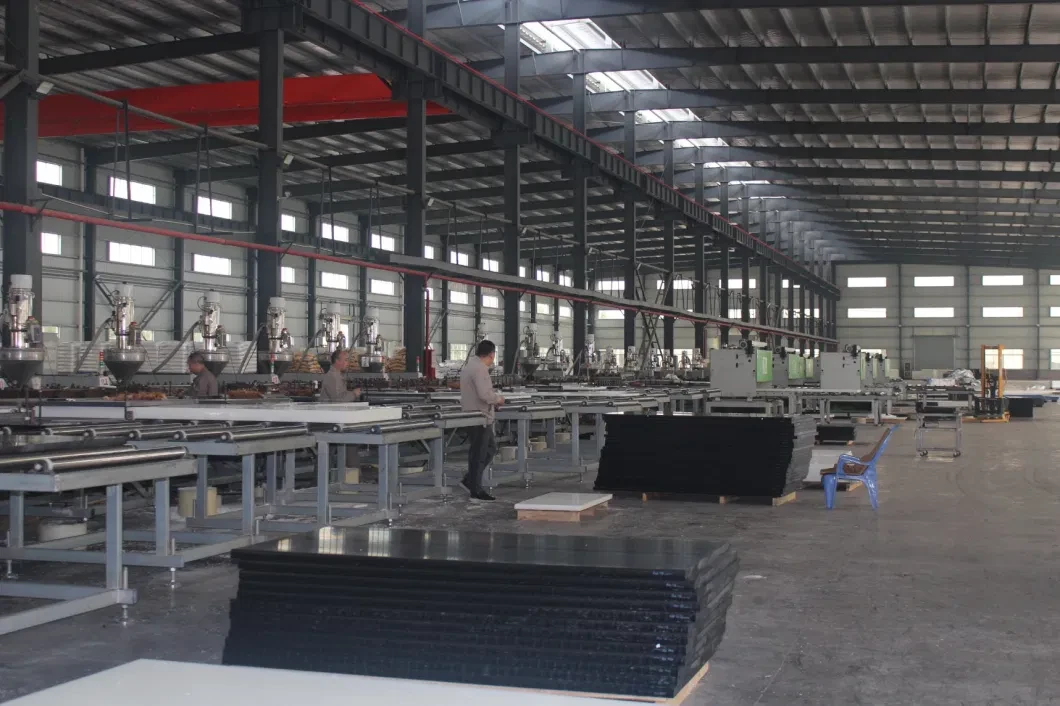

Warehouse

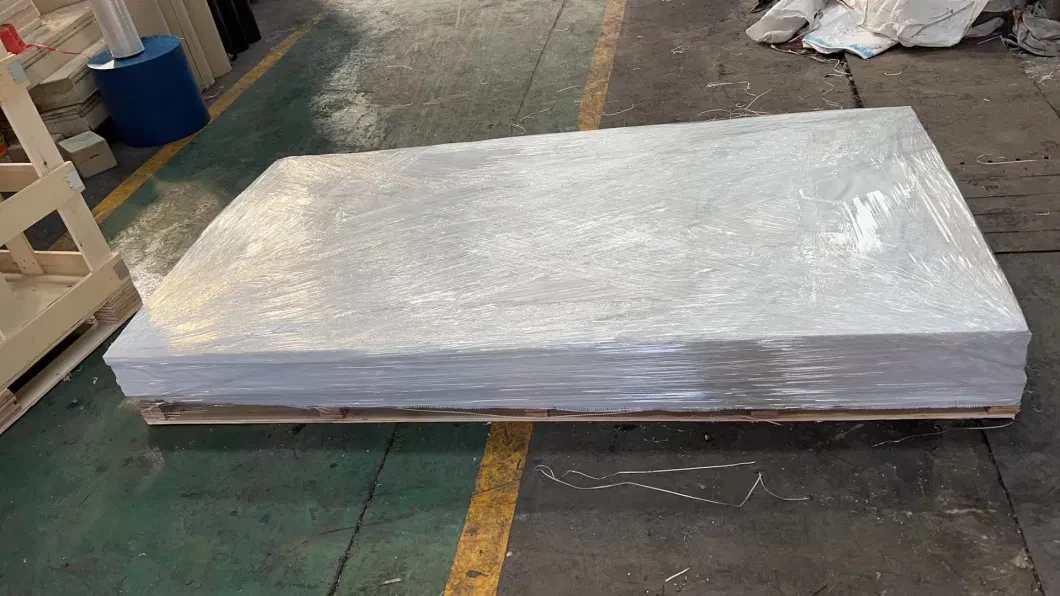

Packaging & Shipping



FAQ

1. Q: What color can you make?

A: Usually we can make the regular color, like green, blue, black, yellow, grey and so on. Or you can offer the pantone color number for reference to produce.

2.Q: What is your MOQ?

A: It depends on the drawing.

3. Q: What is your delivery time?

A: It depends on the volume, usually it is about 7 days.

4. Q: How can I get a sample?

A: Small size of sample are free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier account to us. Customized size of sample should be charged.

5. Q: What is your payment ?

A:30% T/T in advance,  balance before shipment. Other terms negotiable.
