Wear Resistance HDPE Polyethylene Rod HDPE Round Bars

  • MOQ: Default
  • Port: Hangzhou
  • Packaging: Customizable
  • Lead Time: Default
  • Size: Default Size
  • Color: Default Color
Category: HDPE PRODUCTS

Description:

Product Description

Company Info.

Product Description

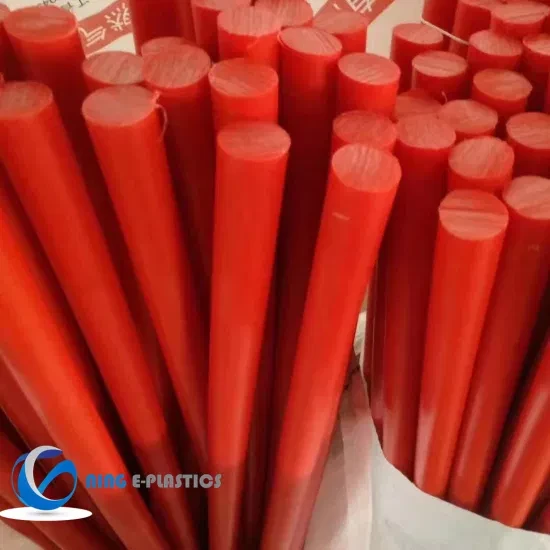

HDPE Rod

Colour : Black /white /red/yellow/orange/blue

HDPE Diameter:  2-200 mm

HDPE rod length:1000mm ,2000mm ,3000mm or customize

High Density Polyethylene (HDPE) is extremely strong against impact, abrasion resistant, and exhibits a low coefficient of friction. The material is also moisture, stain, and odor resistant, and is FDA approved for use in the food processing industry (mainly for cutting boards). The materials durability makes it a perfect match for a variety of applications such as water tanks, chute linings, bottle/bottle cap production and numerous other industrial uses. Borated HDPE offers radiation protection in nuclear facility applications.

Item RESULT UNIT PARAMETER NORM USED
Mechanical properties
Modulus of elasticity 1000 MPa In tension DIN EN ISO 527-2
Modulus of elasticity  1000 - 1400 MPa In flexure DIN EN ISO 527-2
Tensile strength at yield  25 MPa 50 mm/min  DIN EN ISO 527-2
Impact strength (Charpy) 140 Kj/m 2 Max. 7,5j
Notched Impact stren. (Charpy)  No break  Kj/m 2 Max. 7,5j
Ball indentation hardness  50 MPa   ISO 2039-1
Creep rupture strength  12,50 MPa After 1000 hours static load 1% elong. after 1000 hours Against steel p=0,05 N/mm 2
Time yield limit  3 MPa
Coefficient of friction 0,29  ------

Thermal properties
Glass transition temperature -95 °C   DIN 53765
Crystalline melting point 130 °C   DIN 53765
Service temperature 90 °C Short term
Service temperature 80 °C Long term
Thermal expansion  13 - 15  10-5K-1   DIN 53483
Specific heat  1,70 - 2,00  J/(g+K)    ISO 22007-4:2008
Thermal conductivity  0,35 - 0,43 W/(K+m)    ISO 22007-4:2008
Heat distorsion temperature 42 - 49  °C Method A R75
Heat distorsion temperature 70 - 85  °C Method B  R75

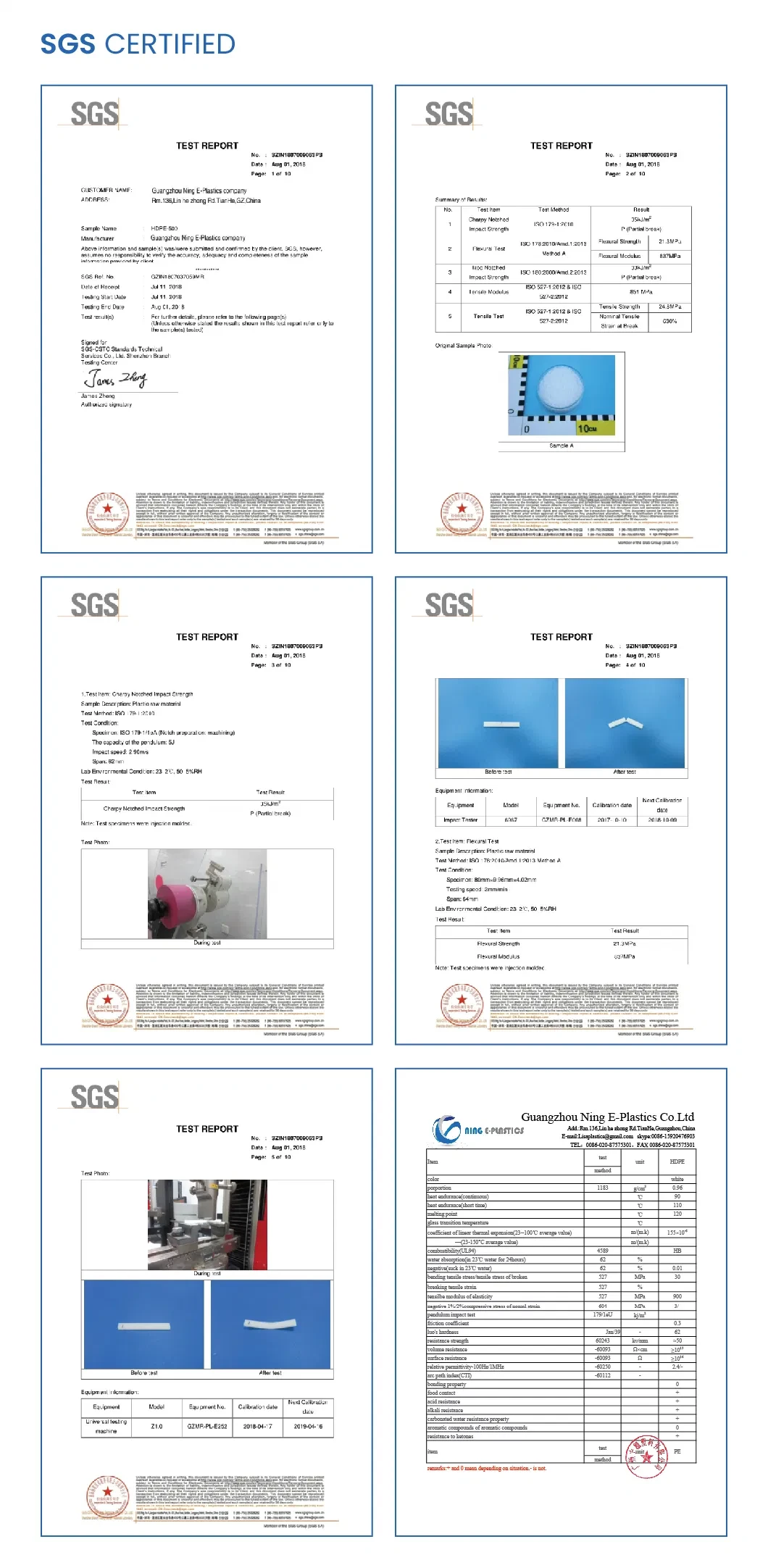

Test Reports

Proof of Quality, Building Trust
